Product Summary

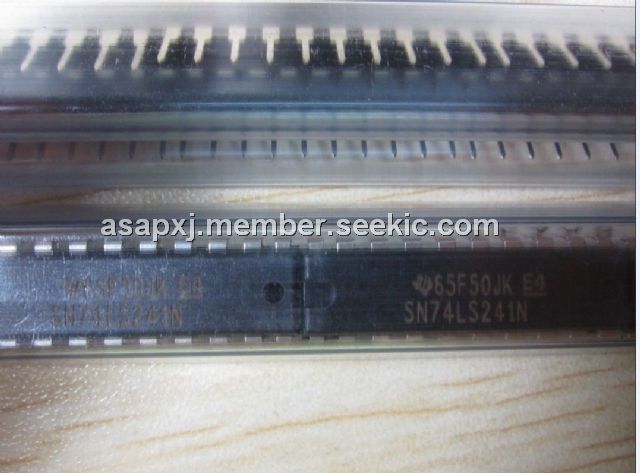

The SN74LS241N ( PB ) is an octal buffer/line driver with 3-state outputs. The SN74LS241N ( PB ) is designed to be employed as memory address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC board density.

Parametrics

SN74LS241N ( PB ) absolute maximum ratings: (1)Input HIGH Voltage: 2.0V(min); (2)Input LOW Voltage 54: 0.7V(max); (3)Input LOW Voltage 74: 0.8V; (4)Hysteresis: 0.2V(min); (5)Input Clamp Diode Voltage: -1.5V(max); (6)Output HIGH Voltage: 2.4V 2.0V (min); (7)Output LOW Voltage: 0.4V(max); (8)Output Off Current HIGH: 20μA (max); (9)Output Off Current LOW: -20μA (max); (10)Input HIGH Current: 20μA, 0.1mA; (11)Input LOW Current: -0.2mA; (12)Output Short Circuit Current: -40mA to -225mA.

Features

SN74LS241N ( PB ) features: (1)Hysteresis at Inputs to Improve Noise Margins; (2)3-State Outputs Drive Bus Lines or Buffer Memory Address Registers; (3)Input Clamp Diodes Limit High-Speed Termination Effects.

Diagrams

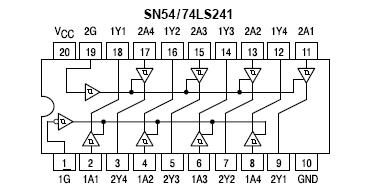

SN74LS241N ( PB ) Pin Configuration
