Product Summary
The SN74LS07NSR is a HEX buffer/driver. It features high-voltage open-collector outputs to interface with high-level circuits or for driving high-current loads. The SN74LS07NSR is also characterized for use as buffers for driving TTL inputs. The device has a rated output voltage of 30 V.
Parametrics
SN74LS07NSR absolute maximum ratings: (1)Supply voltage:7V; (2)Input voltage:7V; (3)Output voltage:30V; (4)Package thermal impedance:86℃/W; (5)Storage temperature range:-65℃ to 150℃.
Features
SN74LS07NSR features: (1)Convert TTL Voltage Levels to MOS Levels; (2)High Sink-Current Capability; (3)Input Clamping Diodes Simplify System Design; (4)Open-Collector Driver for Indicator Lamps and Relays.

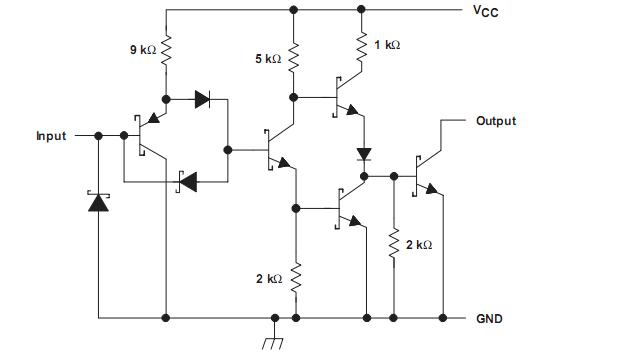

Diagrams
