Product Summary
The SG-615P is a soj high-frequency crystal oscillator.
Parametrics
SG-615P specifications: (1)Output frequency range f0: 1.0250 MHz to 26.0000 MHz; (2)Power source voltage Max. supply voltage VDD-GND: -0.3 V to +7.0 V; Operating voltage VDD: 5.0 V±0.5 V; (3)Temperature range Storage temperature TSTG: -55 ℃ to +125 ℃; Operating temperature TOPR: -20 ℃ to +70 ℃; (4)Current consumption Iop: 23 mA Max; (5)Output disable current IOE: 12 mA Max.
Features
SG-615P features: (1)High-density mounting-type SMD; (2)A general-purpose SMD with heat-resisting cylindrical AT-cut crystal unit and allowing almost the same soldering temperature as SMD IC; (3)Cylindrical AT crystal unit builtin, thus assuring high reliability; (4)Low current consumption by output enable function(OE) or standby function(ST).

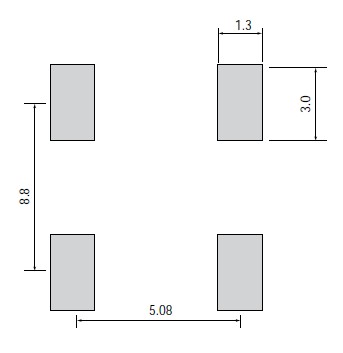

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SG-615P 1.8432MC0:ROHS |
Epson Toyocom |
Standard Clock Oscillators 1.8432MHz 3.3Volts 100ppm -20C +70C |
Data Sheet |
|
|
||||||||||||||
|
SG-615P 12.0000MC3:ROHS |
Epson Toyocom |
Standard Clock Oscillators 12MHz 5Volt 100ppm -20C +70C |
Data Sheet |
|
|
||||||||||||||
|
SG-615P 12.2880MC0:ROHS |
Epson Toyocom |
Standard Clock Oscillators 12.288MHz 3.3Volts 100ppm -20C +70C |
Data Sheet |
|
|
||||||||||||||
|
SG-615P 14.31818MC3:ROHS |
Epson Toyocom |
Standard Clock Oscillators 14.31818MHz 5Volt 100ppm -20C +70C |
Data Sheet |
|
|
||||||||||||||
|
SG-615P 14.31818MB0: PURE SN |
Epson Toyocom |
Standard Clock Oscillators 14.31818MHz 5Volt 50ppm -20C +70C |
Data Sheet |
|
|
||||||||||||||
|
SG-615P 2.0480MC0:ROHS |
Epson Toyocom |
Standard Clock Oscillators 2.048MHz 3.3Volts 100ppm -20C +70C |
Data Sheet |
|
|
||||||||||||||
|
SG-615P 2.4576MC0:ROHS |
Epson Toyocom |
Standard Clock Oscillators 2.4576MHz 3.3Volts 100ppm -20C +70C |
Data Sheet |
|
|
||||||||||||||
|
SG-615P 22.1184MC0:ROHS |
Epson Toyocom |
Standard Clock Oscillators 22.1184MHz 3.3Volts 100ppm -20C +70C |
Data Sheet |
|
|
||||||||||||||
