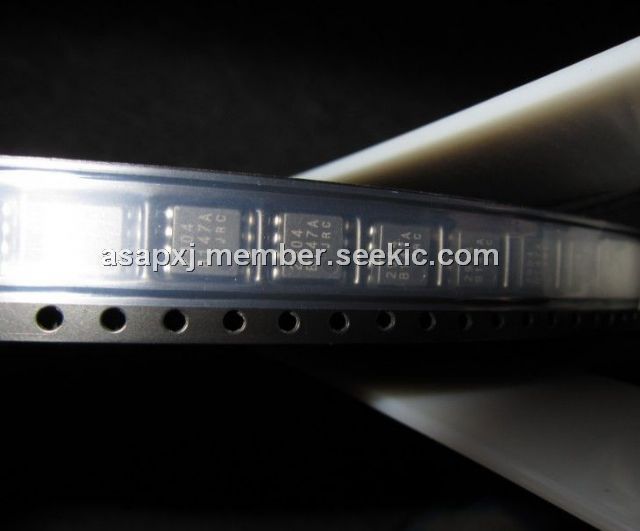

NJM2904M

single-supply dual operational amplifier, SOP8, 3V to 32V, 0.7mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.05~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.05~0.05

PartNumber:: NJM2904M

Brand:: Japan Radio Co.,ltd - JRC | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-04

From Other Seller

Part Number:NJM2904M
US $0.05 - 0.05
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

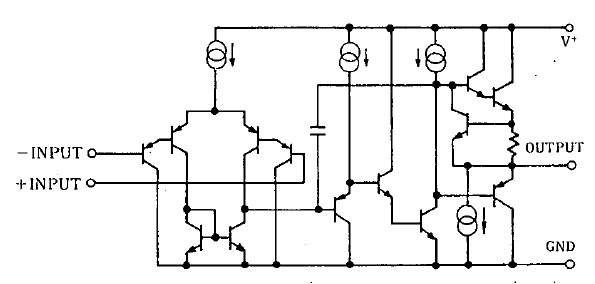

The NJM2904M is a single-supply dual operational amplifier. The NJM2904M consists of two independent, high gain, internally frequency compensated operation amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Applications areas of the NJM2904M include transducer amplifiers, DC gain blocks, and all the conventional opamp circuits which now can be more easily implemented in single power supply systems.

Parametrics

NJM2904M absolute maximum ratings: (1)Supply voltage V: 32(or ±16)V; (2)Differential input voltage VID: 32V; (3)Input voltage VIC: -0.3 to 32 V; (4)Power dissiaption PD: 500mW; (5)Operating temperature range Topr: -40 to 85 ℃; (6)Storage temperature range Tstg: -50 to 125 ℃.

Features

NJM2904M features: (1)Single supply; (2)Operating voltage: 3V to 32V; (3)Low operating current: 0.7mA typ; (4)Slew rate: 0.5V/μs typ; (5)Bipolar technology; (6)Package outline: DIP8, DMP8, SIP8, SSOP8.
