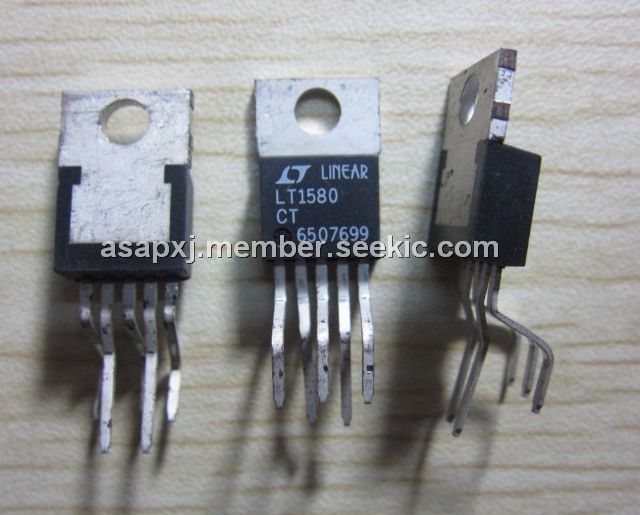

Product Summary

The LT1580CT is a 7A low dropout regulator designed to power the new generation of microprocessors. The dropout voltage of this device is 100mV at light loads rising to just 540mV at 7A. To achieve this dropout, a second low current input voltage 1V greater than the output voltage, is required. The device of the LT1580CT can also be used as a single supply device where dropout is comparable to an LT1584. The applications of the LT1580CT include Microprocessor Supplies, Post Regulators for Switching Supplies, High Current Regulators, 5V to 3.XXV for Pentium Processors Operating at 90MHz to 166MHz and Beyond, 3.3V to 2.9V for Portable Pentium Processor, Power PCTM Series Power Supplies.

Parametrics

LT1580CT absolute maximum ratings: (1)VPOWER Input Voltage: 6V; (2)VCONTROL Input Voltage: 13V; (3)Storage Temperature: –65℃ to 150℃; (4)Operating Junction Temperature Range; (5)Control Section, LT1580C: 0℃ to 125℃; (6)Power Transistor, LT1580C: 0℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1580CT features: (1)Low Dropout, 540mV at 7A Output Current; (2)Fast Transient Response; (3)Remote Sense; (4)1mV Load Regulation; (5)Fixed 2.5V Output and Adjustable Output; (6)No Supply Sequencing Problems in Dual Supply Mode.

Diagrams

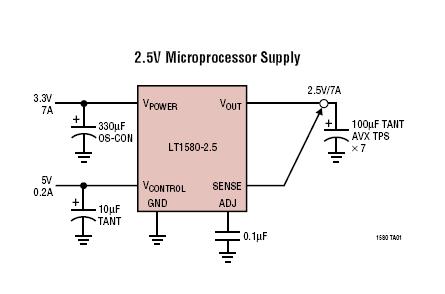

LT1580CT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

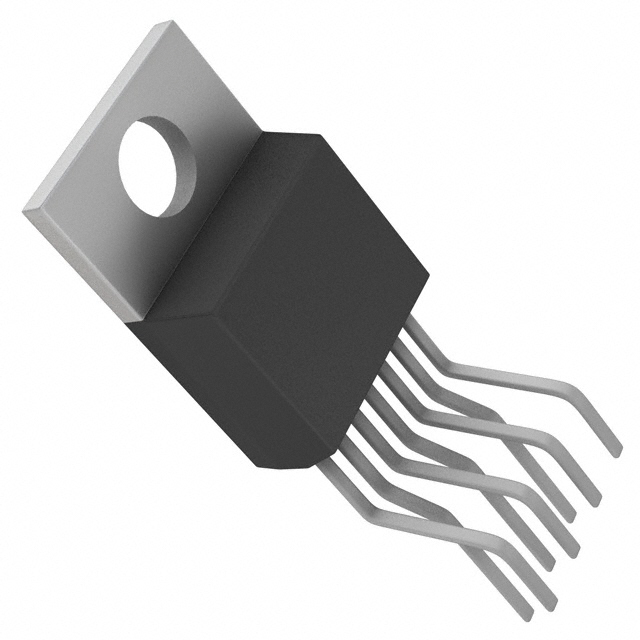

LT1580CT
LT1580CT

IC LDO REGULATOR 7A ADJ TO220-5
Data Sheet
0-1100: $3.45
LT1580CT#06PBF
LT1580CT#06PBF

IC CONV PENTIUM PROCESSR TO220-5
Data Sheet
0-150: $3.39
LT1580CT#PBF
LT1580CT#PBF

IC LDO REGULATOR 7A ADJ TO220-5
Data Sheet
0-1: $6.94
1-25: $4.60
25-100: $3.47
LT1580CT7-2.5#06PBF
LT1580CT7-2.5#06PBF

IC CONV PENTIUM PROCESSR TO220-7
Data Sheet
0-150: $3.50
LT1580CT7-2.5#PBF
LT1580CT7-2.5#PBF

IC LDO REGULATOR 7A 2.5V TO220-7
Data Sheet
0-150: $3.50
LT1580CT7-2.5
LT1580CT7-2.5

IC LDO REGULATOR 7A 2.5V TO220-7
Data Sheet
0-1100: $3.56
