Product Summary

The ELT5KT470LB is a High inductance, low profile choke coil. The applications of it are DC-DC converter circuitry for LCD driver circuits, DC-DC converter circuitry for low profile DC-DC equipment.

Parametrics

ELT5KT470LB general specifications: (1)inductance:47.0uH, tolerance:±15%, test freq.:100kHz; (2)R.D.C (at 25℃):1.70Ω, tolerance:±20%; (3)DC current(at 25℃) max.:300mA; (4)maximum DC current(at 25℃) max.:320mA.

Features

ELT5KT470LB features: (1)Low profile (H=1.2 mm max.); (2)High saturation current characteristics.

Diagrams

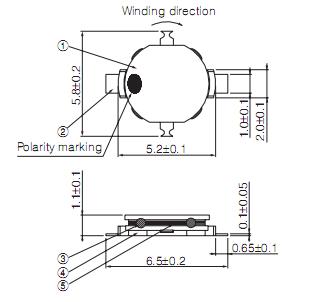

ELT5KT470LB package dimensions
