Product Summary
The 90SMO is a standard SMD clock oscillator.
Parametrics
90SMO specifications: (1)Generic part number: 90SMO; (2)Frequency range: 1.500 MHz to 80.000 MHz; (3)Frequency stability(0℃ to +70℃): 90SMO(3.3VC) ±100 ppm; (4)Operating Conditions Operating temperature: 0℃ to +70℃; (5)Input voltage (VDD): +3.0V DC ±0.3V; (6)OE control voltage VIH : +2.4VDD min.; (7)Absolute Max. Rating Supply voltage: -0.5V to +7.0V; (8)Storage temperature: -55℃ to +125℃; (9)Startup time: 100 ns max.; (10)Aging: ±5 ppm max. at +25℃ ±3℃ for first year; (11)Reflow soldering condition: +240℃±5℃ for 10 seconds, +150℃±10℃ for 1 to 2 minutes (preheating).

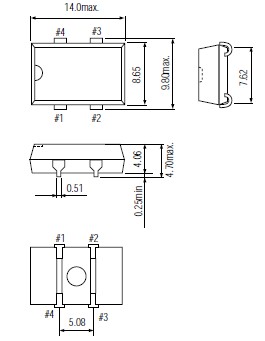

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 90SMO |
Other |
|
Data Sheet |
Negotiable |
|
||||
