Product Summary
The 8EWF04STR is a surface mountable fast soft recovery diode. It has been optimized for combined short reverse recovery time, low forward voltage drop and low leakage current. The applications of the 8EWF04STR include: Output rectification and freewheeling diode in inverters, choppers and converters; Input rectifications where severe restrictions on conducted EMI should be met.
Parametrics
8EWF04STR absolute maximum ratings: (1)On the conditions of @ TC=96℃, 180° conduction half sine wave, IF(AV) Max. Average Forward Current: 8A ; (2)On the conditions of 10ms Sine pulse, rated VRRM applied, IFSM Max. Peak One Cycle Non-Repetitive Surge Current: 170A; On the conditions of 10ms Sine pulse, no voltage reapplied, IFSM: 200A; (3)On the conditions of 10ms Sine pulse, rated VRRM applied, I2t Max. I2t for fusing: 140A2S; On the conditions of 10msSinepulse, novoltagereapplied, I2t: 200A2S.
Features
8EWF04STR characteristics: (1)IF(AV) Sinusoidal waveform: 8A; (2)VRRM: 200 to 600V; (3)IFSM: 170A; (4)VF @ 8A, TJ = 25℃: 1.2V; (5)trr @ 1A, 100A/μs: 55 ns; (6)TJ: -40 to 150℃.

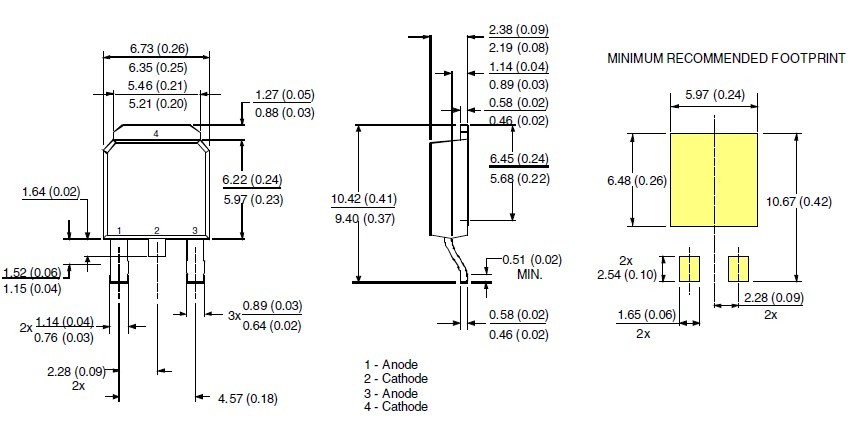

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 8EWF04STRL |
Vishay Semiconductors |
Rectifiers 400 Volt 8.0 Amp |
Data Sheet |
Negotiable |
|
||||
|
8EWF04STRR |
Vishay Semiconductors |
Rectifiers 400 Volt 8.0 Amp |
Data Sheet |
Negotiable |
|
||||
