Product Summary
The 74VHC244SJX is an advanced high speed CMOS octal bus buffer fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The 74VHC244SJX is a non-inverting 3-STATE buffer having two active-LOW output enables. The 74VHC244SJX is designed to be used as 3-STATE memory address drivers, clock drivers, and bus oriented transmitter/receivers. An input protection circuit ensures that 0V to 7V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5V to 3V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.
Parametrics
74VHC244SJX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to 7.0V; (2)DC Input Voltage (VIN): -0.5V to 7.0V; (3)DC Output Voltage (VOUT): -0.5V to VCC 0.5V; (4)Input Diode Current (IIK): -20 mA; (5)Output Diode Current (IOK): 20 mA; (6)DC Output Current (IOUT): 25 mA; (7)DC VCC/GND Current (ICC): 75 mA; (8)Storage Temperature (TSTG): -65 to 150℃; (9)Lead Temperature (TL)(Soldering, 10 seconds): 260℃.
Features
74VHC244SJX features: (1)High Speed: tPD 3.9ns (typ)at VCC 5V; (2)High noise immunity: VNIH VNIL 28% VCC (min); (3)Power down protection is provided on all inputs; (4)Low noise: VOLP 0.6V (typ); (5)Low power dissipation: ICC 4 PA (max)@ TA 25℃; (6)Pin and function compatible with 74HC244.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

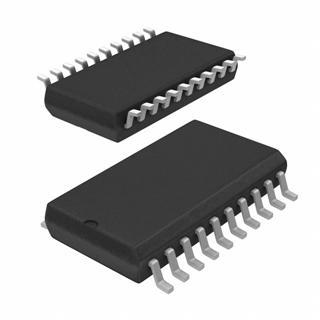

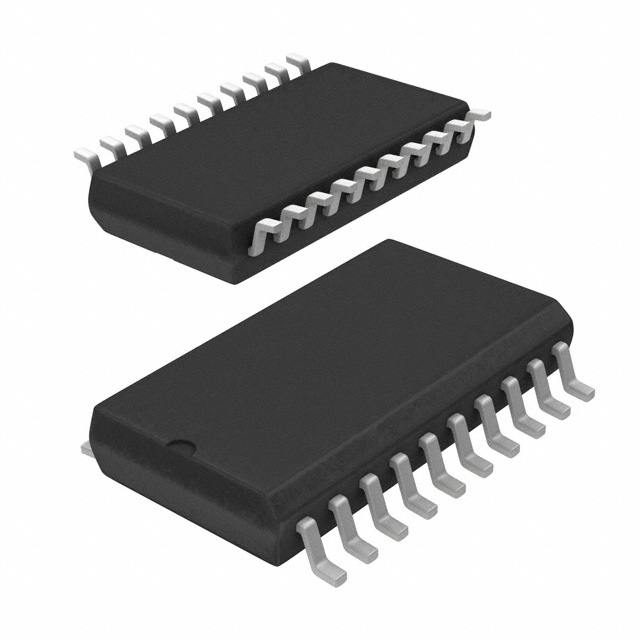

 74VHC244SJX |
Fairchild Semiconductor |
Buffers & Line Drivers Oct Buffer/Line Drv |
Data Sheet |
|
|
||||||||||||
 |
74VHC244SJX_NL |
Fairchild Semiconductor |
Buffers & Line Drivers |
Data Sheet |
Negotiable |
|
||||||||||||
